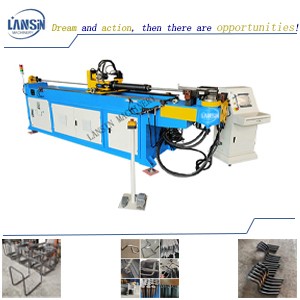

Hydraulic CNC tube bending machine for low-pressure tube, high-pressure tube, Lubricating oil pipe, headrest rod and pipe, EXHAUST SYSTEMS, Car Bumper, gym fitness equipment, Motorcycle Frame, Bike Handle Bar Grips, brake tube , stay tube

  • Visit:1
  • Source:Zhangjiagang Lansin Machinery Co., Ltd
  • Time:2022-03-30
Order phone:+86-13773235840
E-mail:ylxsales001@126.com

Detail

Hydraulic CNC tube bending machine for low-pressure tube, high-pressure tube, Lubricating oil pipe, headrest rod and pipe, EXHAUST SYSTEMS, Car Bumper, gym fitness equipment, Motorcycle Frame, Bike Handle Bar Grips, brake tube , stay tube, stainless steel pipe bending machine for seat frame back, seat frame base, muffler assembly silencer, carrier frame, main centre stand, side stand, foot step, foot board support, link tube,engine cradle,link rod, grip frame, Crash Guard (Leg Guard), Motorcyle Handle Stem, Jupiter Frame,2 Wheeler Chassis (Scooter)

Product Description

Type

SB-75CNC-3A1S

Max OD(steel pipe)

Φ75×3mm

maxi bending radius(Steel pipe) 1.5XOD

350mm

Max mandrel support length

2800mm can be increase according to customer’s option

bending angle

0-180°

Pipe number of files can be set into the program

800 unit

rotation angle

360 degree

Fit to Shapes

Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc

pipe material

steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube

machine precision

feeding ±0.1mm
rotation ±0.1mm
bending ±0.1mm

feeding speed

450m/sec

bending speed

40degree/sec

hydraulic motor power

7.5kw

Control method

PLC and touch screen

Cooling system

fan cooling

machine size

5500*100*1400mm

machine weight

3800kgs

Hydraulic CNC tube bending machine for low-pressure tube, high-pressure tube, Lubricating oil pipe, headrest rod and pipe, EXHAUST SYSTEMS, Car Bumper, gym fitness equipment, Motorcycle Frame, Bike Handle Bar Grips, brake tube , stay tube, stainless steel pipe bending machine for seat frame back, seat frame base, muffler assembly silencer, carrier frame, main centre stand, side stand, foot step, foot board support, link tube,engine cradle,link rod, grip frame, Crash Guard (Leg Guard), Motorcyle Handle Stem, Jupiter Frame,2 Wheeler Chassis (Scooter)

1. Adopt industrial touch screen and PLC program technology control, man-machine conversational operation.
2. The bending angle is automatically controlled by inputting data on the touch screen.
3. Each part of CNC automatic pipe bending machine SB-75CNC-3A-1S can have 20 bends. A maximum of 100,000 sets of bending programs can be stored. (expandable)
4. With springback coefficient compensation function, CNC automatic pipe bending machine SB-75CNC-3A-1S has higher working efficiency.
5. All movements of the equipment are driven by servo and hydraulic, with stable operation and high precision.
6. The powerful water cooling system allows the equipment to work stably in a high temperature environment.
7. Mould replacement is simple and convenient, CNC automatic pipe bending machine SB-75CNC-3A-1S can facilitate flexible production.
8. The mobile foot switch has three functions: automatic start, emergency stop, and emergency stop continue, with high safety.
9. The mechanical parts of CNC automatic pipe bending machine SB-75CNC-3A-1 are mainly CNC machining, Taiwan-funded heat treatment, accurate size and durable.
11. High intelligence and high automation pipe bending equipment controlled by industrial computer. (optional)
12. Install a variety of pipe bending dies with different bending radii, CNC automatic pipe bending machine SB-75CNC-3A-1 can automatically complete the processing of multiple different bending radii. (optional)
13.CNC automatic pipe bending machine SB-75CNC-3A-1 has Y, B, C input conversion function. (optional)
14. The pipe fitting data can be directly input to generate 3D stereogram. (optional)
15. With air cooling system. (optional)
16. Three-axis CNC, pneumatic clamping.
17. Tabular programming, easy to operate.
18. Beautiful appearance, CNC automatic pipe bending machine SB-75CNC-3A-1 has good processing technology.

The CNC automatic pipe bending machine SB-75CNC-3A-1S system has manual and automatic operation modes. In the automatic mode, it can be divided into step-following bending and origin through bending, which is convenient for processing a variety of bends. For pipe fittings with different bending radii, the upper and lower die switching is used to realize pipe bending. For bending pipes with special processing requirements, CNC automatic pipe bending machine SB-75CNC-3A-1S is designed with linkage, decomposition and corresponding auxiliary actions to avoid mechanical interference and realize the automation of the pipe bending process.
